B15Hinged door single

Fire class B15

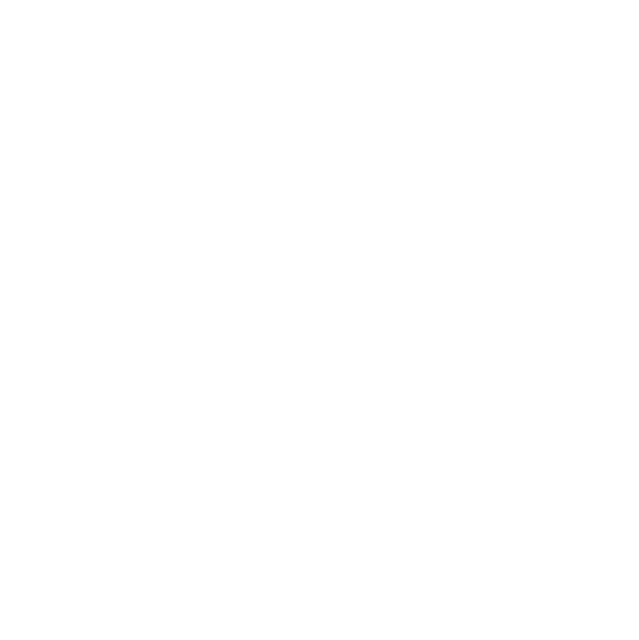

Max element size 1394 x 2500 mm
Max opening width 90° C/O 1179 mm
Max opening width 180° C/O 1250 mm
Max opening height C/O 2425 mm
Sound reduction* up to 44 db
Glass type 15 mm tempered fire glass
32 mm IGU soundproof fire glass
32 mm decorative fire glass
Frame Aluminium
Surface treatments RAL/NCS-color charts, anodized in various shades, stainless steel brushed or polished.
Blows, patterns Kaune Smart Glass, decorative metal nets, digi prints, colour inserts and sand blasted patterns.
Additional info – Integration into bulkhead window possible
– Slim architectural hinges
– Decorative glass can be used
(ribbed-, pattern- and color glass, etc.)

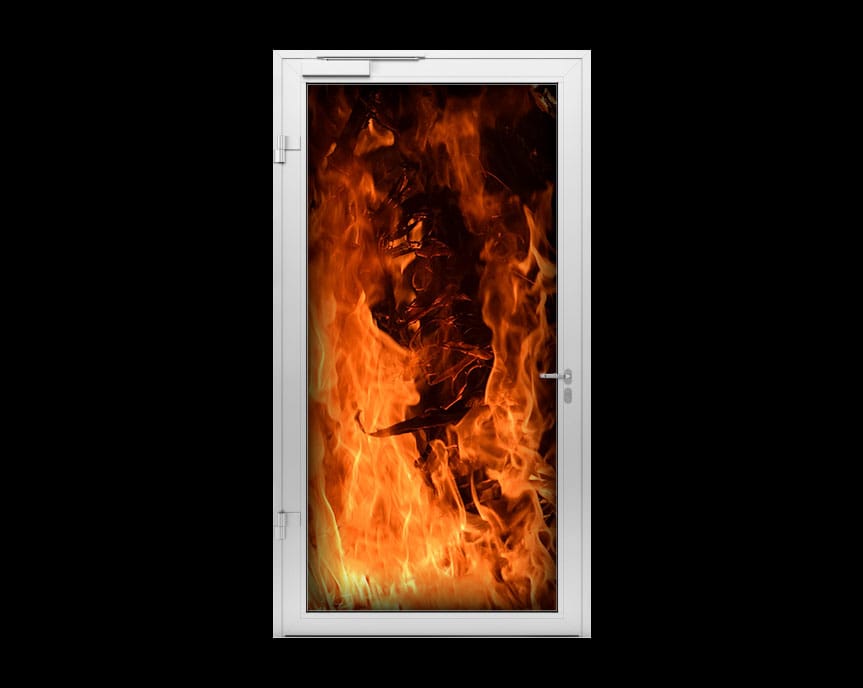

Reference photos
